Step 4-E

Results of Laminar Pipe (Gmax)

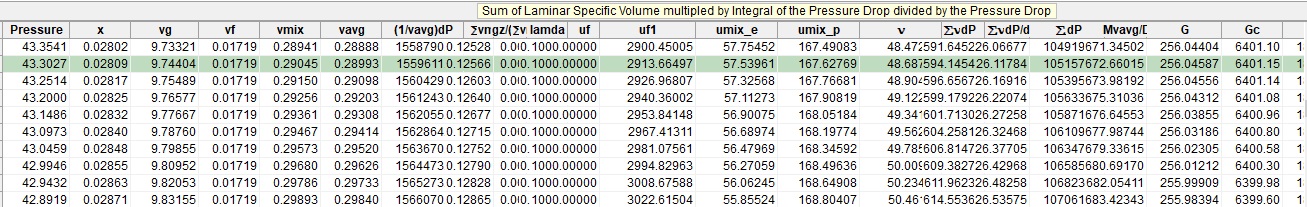

Below are the results from the direct integration of the VdP integral shown in the numerical integration table and shown graphically.

For the piping input the physical properties remain the same except the liquid viscosity at State A (1,000 cp), State B (2,000 cp), and State C (10,000 cp).  The vapor viscosity was taken as 0.013 cp for all states.

                                                                                                    L.L. Simpson                                               Mach II CDS

Choke (psia)                                                                                   37                                                                43.4

G(max)    lb/hr-in2                                                                      6,024                                                          6,401
